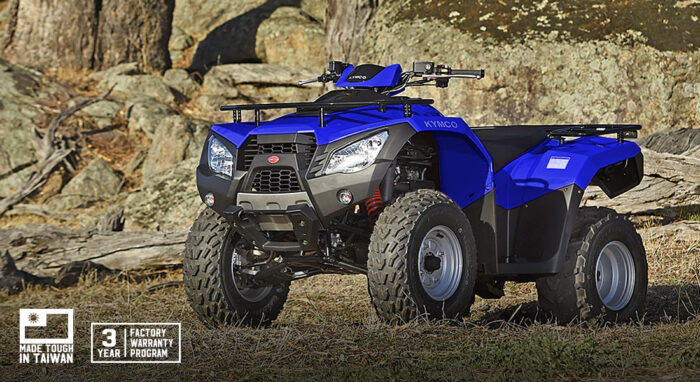

Kymco MXU 300R Quadbar
EVERYTHING YOU NEED TO GET THE JOB DONE.
Loaded with features that you’d only expect on more expensive machines, the new Kymco MXU 300R has everything you need to get the job done. New and enhanced body styling and design. Dual a-arm independent front suspension and unit-swing rear provide enhanced ground clearance and make for a comfortable ride while the liquid-cooled 19HP four-stroke engine provides all the power you need. Front and rear hydraulic disc brakes make stopping reliable while carry racks make this unit practical on the farm. With value for money features, the KYMCO MXU 300R will make light work of even the busiest day.
Description
FEATURES
ALL THE POWER YOU NEED
270cc, SOHC, liquid-cooled four-stroke engine provides reliable power
SIMPLE CARBURETTOR
Carburettor with choke is reliable and simple to maintain
EASY TWIST-AND-GO TRANSMISSION
CVT automatic transmission with reverse gear for easy operation
RELIABLE ELECTRIC START
Electric start makes starting simple every time
SIMPLE RECOIL BACKUP START
Recoil starter provides an alternative starting method
SUPERIOR BRAKING PERFORMANCE
Front and rear hydraulic disc brakes provide superior braking performance
PARKING BRAKE
Parking brake for safe parking while the rider is off the machine
BROAD HALOGEN LIGHTING
Twin front halogen head lamps with high / low beam provide a broad spread of light
REAR HALOGEN BRAKE LAMPS
Rear halogen brake lamps for enhanced visibility
CONVENIENT FRONT AND REAR CARRY RACKS
Front and rear carry racks allow you to haul additional equipment
AT A GLANCE INSTRUMENTATION
Backlit digital dash with speedometer, clock, trip meter, fuel and temperature indicators
RESPONSIVE FRONT SUSPENSION
Dual a-arm independent front suspension with twin shock absorbers for stable handling
STABLE REAR SUSPENSION
Unit-swing rear suspension with single shock absorber
DEPENDABLE SHAFT DRIVE
Enclosed shaft drive system requires less maintenance and delivers increased reliability.
LARGE FUEL TANK
Large 12.5 litre fuel tank will keep you out longer
DURABLE STEEL WHEELS
10 inch steel wheels are durable and simple to keep clean
LARGE UNDER SEAT STORAGE
Secure under seat storage
FACTORY WARRANTY
Three year factory warranty program* supported by a national dealer network
*KYMCO products are supported by our 3-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.
SPECIFICATIONS
| ENGINE | |
|---|---|
| Engine | SOHC, liquid-cooled, four-stroke |
| Displacement | 270cc |
| Power | 19.6 HP @ 7000 RPM |
| Bore x Stroke | 72.7 x 65.2 mm |
| Compression ratio | 11:1 |
| Fuel system | Carburettor |
| Ignition | CDI |
| Starting system | Electric with recoil backup |
| Transmission | CVT automatic with reverse gear |
| Final drive | 2WD, Shaft |
| SUSPENSION | |
|---|---|
| Front suspension | Dual a-arm with twin shock absorbers |
| Rear suspension | Unit-swing with single shock absorber |
| Front tire size | 22 x 7 – 10 inch |
| Rear tire size | 22 x 10 – 10 inch |
| Front brakes | Hydraulic disc |
| Rear brakes | Hydraulic disc |
| CAPACITY | |
| Carrying | 20 kg (front) / 30 kg (rear) |
| Towing | 227 kg |
| SIZE / WEIGHT | |
|---|---|
| Length x Width x Height | 1810 mm x 1030 mm x 1100 mm |
| Wheelbase | 1170 mm |
| Seat height | 810 mm |
| Ground clearance | 250 mm |
| Fuel capacity | 12.5 l |
| Dry weight | 175 kg |
| OTHER | |
| Colour choices | Blue |
| Warranty | 3 year factory program* |
