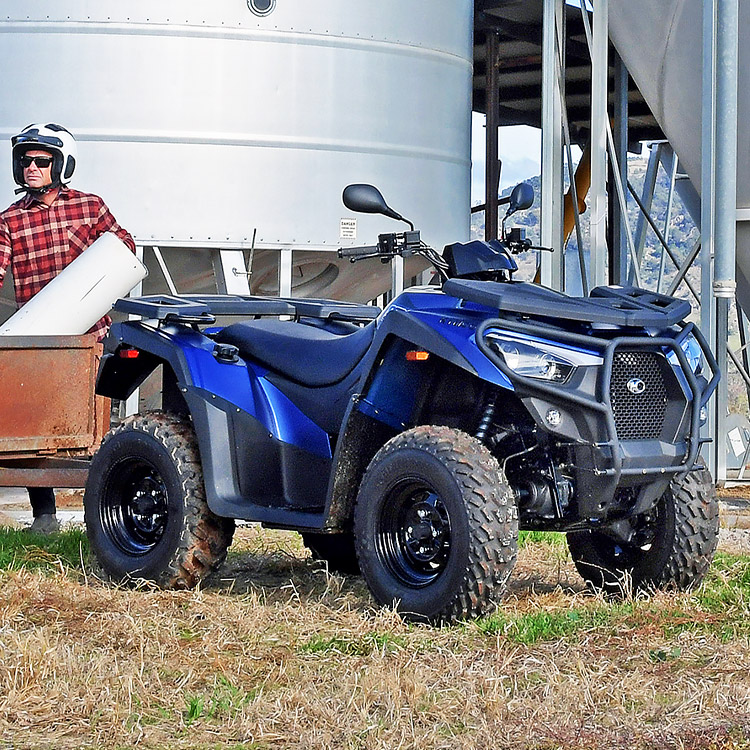

Kymco MXU 550i EPS Quadbar
MIDDLEWEIGHT POWERHOUSE
If it’s versatility you want, look no further! Not only has KYMCO introduced an all-new middleweight ATV with a modern and high-end look, but with 33hp and 39Nm from the liquid-cooled and fuel-injected powerplant towing is a breeze and even the toughest terrain hardly raises an eyebrow. Standard fitments include a front bumper and indicators. Modern flair but still with the simplicity that farmers and agriculturalists love: the Kymco MXU 550i EPS has all bases covered.
Description
FEATURES
Kymco MXU 550i EPS
MODERN ENGINE
The fuel-injected 501cc, DOHC, four-stroke, four-valve, single-cylinder liquid-cooled engine produces 25kW (34hp) at 6500rpm and 39Nm at 5500rpm. That means getting the job done in a simple, no-fuss manner – and with some horsepower to spare if you want to finish the day with a little bit of fun!
CLEAN AS A WHISTLE
Sealed air intake filter system to keep the air filter clean and dry.
EASY ON THE WHEEL
With electronic power steering, relax those muscles.
CVT TRANSMISSION
CVT automatic transmission with low, high, neutral and reverse gears with park function and engine braking.
TAKE YOUR PICK
On-demand 2WD/4WD with front differential lock and shaft drive to keep moving in slippery terrain and extricate yourself from the deepest ruts.
INDEPENDENT APPROACH
Durable four-wheel double A-arm independent suspension for sure-footed handling in rough terrain. There are also five-position preload-adjustable shocks, offering up to 185mm of travel.
WORKING AS ONE
Linked hydraulic disc brakes with park locking feature.
STACKS ON
Front and rear steel tube cargo racks.
LIGHT SHOW
Dual high/low beam headlights with LED markers and dual rear brake lights.
FRONT BUMPER BAR
We asked KYMCO for it and the company delivered! A great local addition to the MXU 550i EPS to protect the LED lights and grille.
DURABLE WHEELS AND TYRES
Sturdy 12-inch steel wheels, gripped by 25-inch tyres that deliver superb traction.
BIG TANK
A massive 20-litre fuel tank ensures the MXU 550i EPS will pump out the long hours.
DEEP UNDER SEAT STORAGE
Secure under seat storage provides additional storage capacity.
FACTORY WARRANTY
3-year factory warranty program supported by a national dealer network.
SPECIFICATIONS
ENGINE & TRANSMISSION
Type
Single-cylinder, four-stroke, liquid-cooled, four-valve, DOHC
Displacement
501cc
Bore x stroke
92mm x 75.4mm
Fuel system
Electronic fuel injection
Ignition
ECU
Starting system
Electric
Transmission
CVT with low, high, neutral and reverse gears
PERFORMANCE
Maximum power
25kW (34hp) at 6500rpm
Maximum torque
39Nm at 5500rpm
SUSPENSION & BRAKES
Front suspension
Double A-Arm, independent
Rear suspension
Double A-Arm, independent
Shock absorbers
Five-way preload adjustable
Brakes
Hydraulic disc brakes
Wheels/tyres
12-inch steel/25-inch
DIMENSIONS & CAPACITIES
L x W x H
2210mm x 1219mm x 1255mm
Wheelbase
1298mm
Seat height
926mm
Ground clearance
264mm
Fuel capacity
20 litres
Dry weight
329kg
Towing capacity
427kg
OTHER
Tow pack, horn, lights and mirrors
Yes
Colour
Petroleum Blue
Warranty
3 year factory warranty
